Precision LVDT Displacement Sensor Waterproof Linear Position Transducer
This premium LVDT Displacement Sensor delivers exceptional linear position measuring with 0.1% accuracy. Engineered for rigorous industrial monitoring, it ensures stable signal output in harsh conditions without wear.
- Unmatched Linearity Accuracy Ensuring Reliable Data For Your Critical Testing Projects.
- IP68 Waterproof Rating Allows Stable Long-term Performance In Submersible Conditions.
- Non-contact Inductive Technology Eliminates Internal Wear For Infinite Service Life.
- Miniature Cylindrical Design Fits Perfectly Into Space-constrained Industrial Areas.
- Standard DC 24V Power Supply Compatible With Most Modern Signal Processing Units.
- Robust Stainless Steel Housing Protects Internal Components From Harsh Environments.
- Fast Signal Response Frequency Ideal For High-speed Dynamic Displacement Tracking.
- Wide Operating Temperature Range From -25C To +85C Ensures Global Climate Adaptability.
- Zero-drift Signal Stability Maintains Precise Zero-point Calibration Over Long Terms.
- Customizable Stroke Lengths Up To 500mm To Meet Specific Measurement Requirements.
|
|

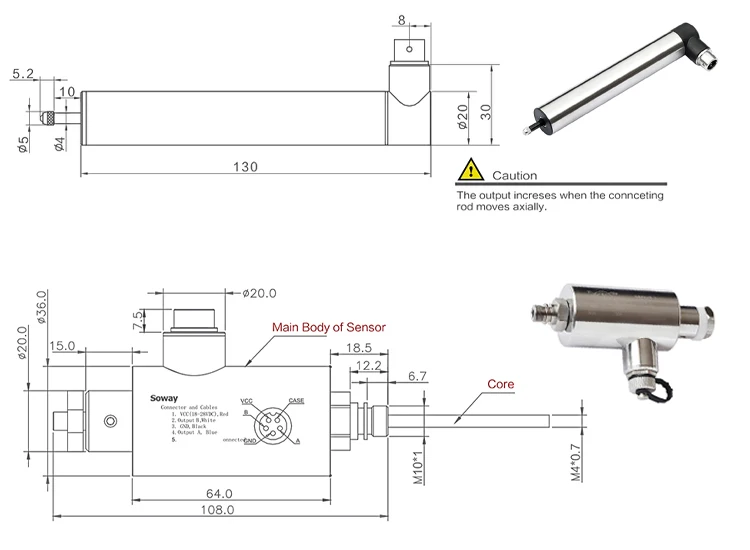

SDVB20M – 5A
|
|
Input Power
|
15 ~ 28 VDC
|
|
Operating Current
|
Current of voltage output ≤ 12mA; 2-wire current output of 4 ~ 20mA, output of 4 ~ 20mA
|
|
Nominal Range
|
0 – 5mm
|
|
Output
|
0 ~ 10V, 4 ~ 20mA
|
|
Linearity Error
|
±0.25%F.S
|
|
Repeatability Error
|
≤ 10μm
|
|
Resolution
|
≤ 1μm
|
|
Operating Temprature
|
-25℃ ~ +85℃
|
|
Thermal Cofficient
|
Null position ≤ 0.01%F.S/℃
|
|
Sensitivity ≤ 0.0025%F.S/℃
|
Our Advantages
FAQ
1. Q: What payment method your company accepts?
A: We accept T/T (Bank Transfer), Western Union, Paypal, Alipay, Wechat pay, L/C accordingly.
A: We accept T/T (Bank Transfer), Western Union, Paypal, Alipay, Wechat pay, L/C accordingly.
2. Q: How long for the production time?
A: For the in stock products, we usually take about 7~10 days, it still depends on order quantity.
A: For the in stock products, we usually take about 7~10 days, it still depends on order quantity.
3. Q: You said we can use our own logo?
A: Yes, we support customized logo.
4. Q: How long for delivery?
A: Usually take 3-7 days on delivery via express shipping methods.
5. Q: How do you control the quality?
A: (1)Material inspection–Check the material surface and roughly dimension.
(2)Production first inspection–To ensure the critical dimension in mass production.
(3)Sampling inspection–Check the quality before sending to the warehouse.
(4)Pre-shipment inspection–100% inspected by QC assistants before shipment.
(2)Production first inspection–To ensure the critical dimension in mass production.
(3)Sampling inspection–Check the quality before sending to the warehouse.
(4)Pre-shipment inspection–100% inspected by QC assistants before shipment.
6. Q: What will you do if we receive poor quality parts?
A: Please kindly send us the pictures, our engineers will find the solutions and remake them for you asap.
7. Q: How can I make a order?
A: You can send a inquiry to us, and you can tell our what’s your requirement, then we can quote for you ASAP.
