Precision CNC Brass Worm Gear Components: Engineering Insights & FAQ

A practical guide to tolerance control, bronze/brass alloy selection, and backlash management for custom worm gear sets.

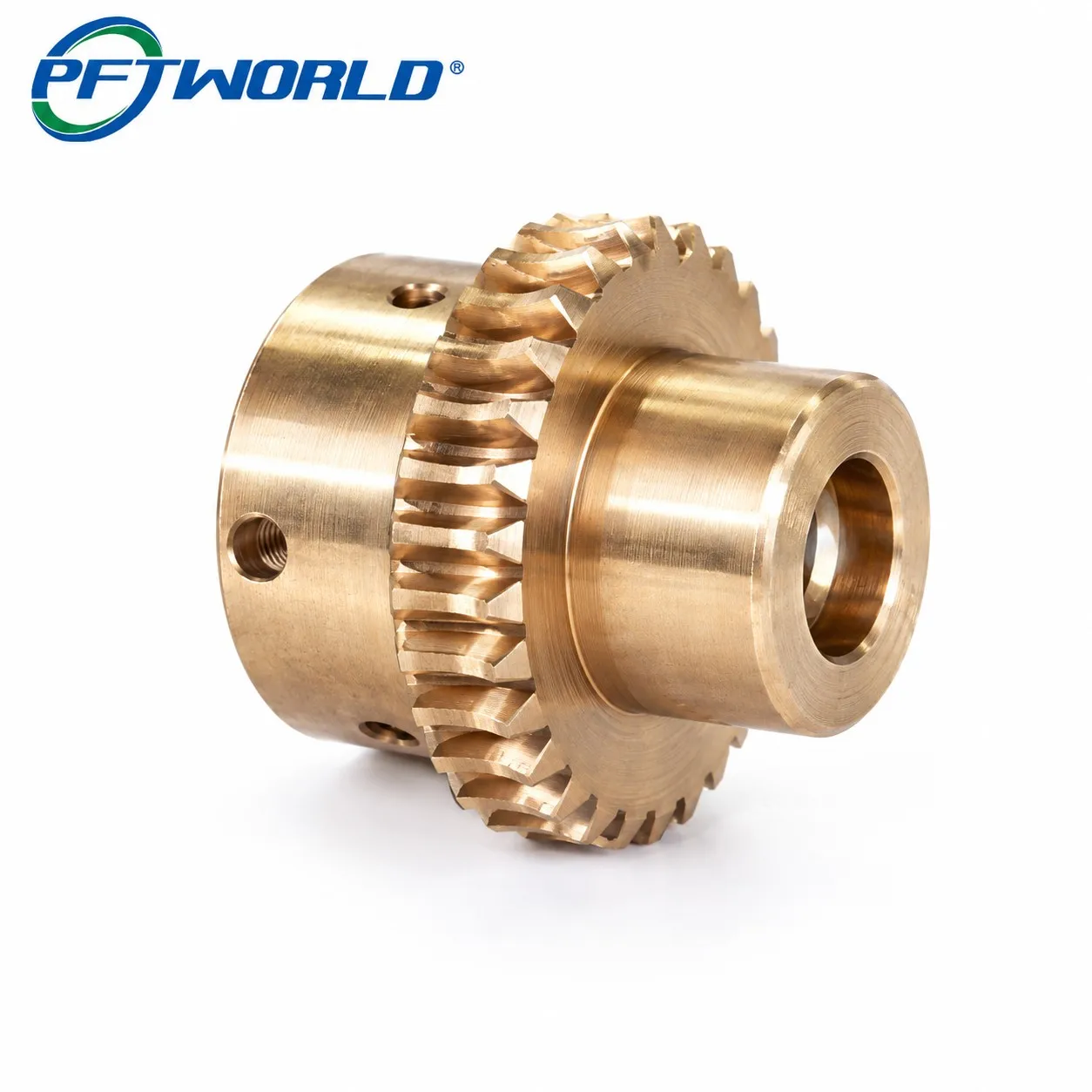

PFTWORLD precision CNC brass worm gear component

Overview

Worm gear sets convert high-speed rotation into controlled, high-ratio torque with minimal backlash. This guide covers CNC machining tolerances, bronze alloy selection, and the questions engineers ask most when sourcing custom gear components.

Key Engineering Specs

Specifications typically held on CNC-machined worm gear components:

±0.005mm ToleranceC3604 BrassTin-Bronze C90500Self-Lubricating5-Axis CNC MilledAnti-Backlash FitIATF 16949

Why Brass & Bronze Alloys

Brass and tin-bronze alloys offer low friction against steel worms, resist galling under sustained load, and dissipate heat efficiently — properties critical for continuous-duty gearboxes used in robotics, instrumentation, and precision actuators.

Frequently Asked Questions

What tolerance can CNC worm gears achieve?

Standard CNC turning/milling holds ±0.01mm; precision grinding on tooth profile and bore reaches ±0.005mm.

Brass or bronze — which is better?

Tin-bronze (C90500) suits heavy-load, low-speed drives; brass (C3604) suits lighter loads needing faster machining and lower cost.

How is backlash controlled?

Backlash is managed through center-distance adjustment, tooth-profile correction, and matched worm/wheel lead angle during CNC cutting.

Do you provide material certification?

Yes — mill certificates, dimensional inspection reports, and ISO 9001 / IATF 16949 documentation accompany every production batch.
