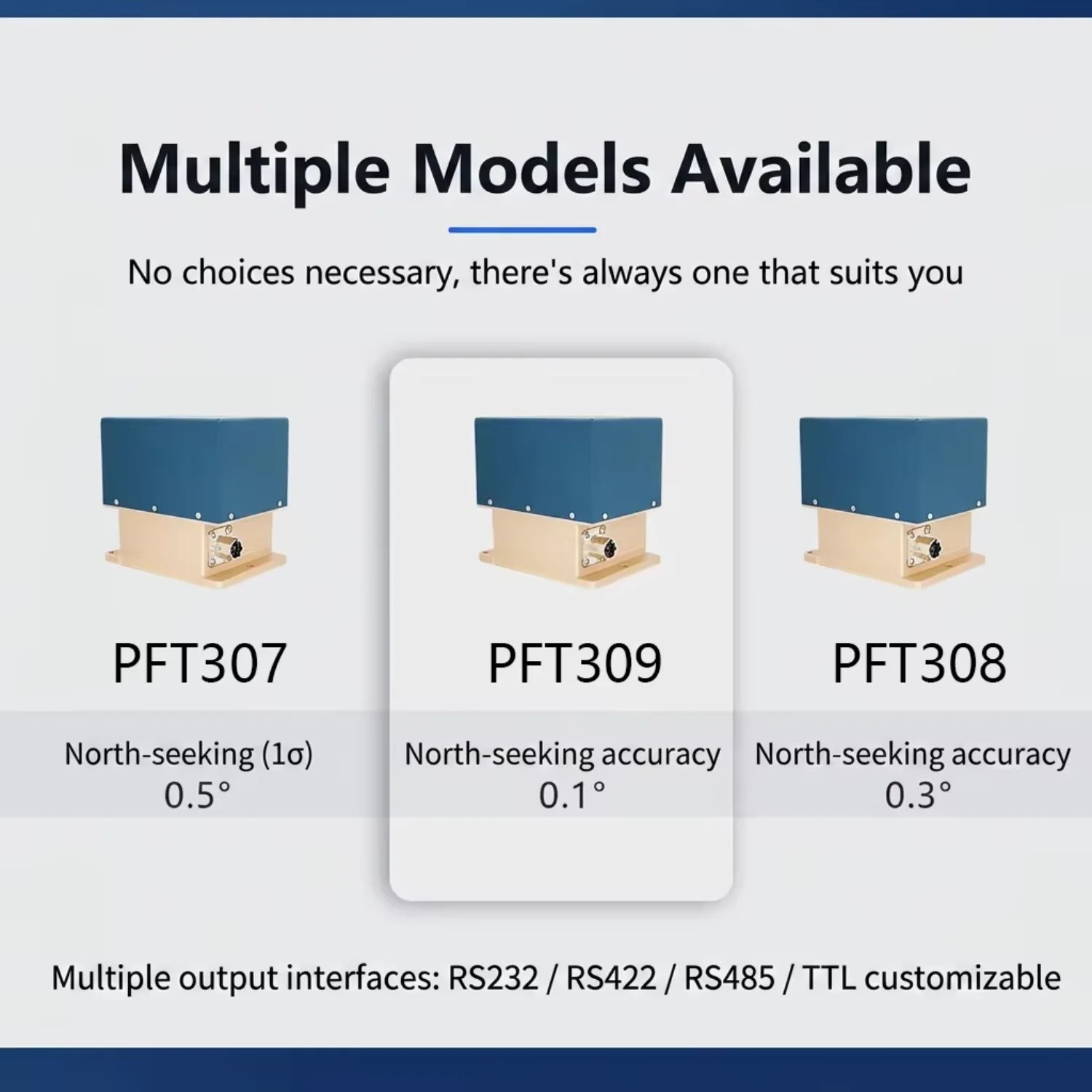

Precision Optical Fiber Gyro North Finder Static Heading Sensor
PRODUCT HIGHLIGHTS

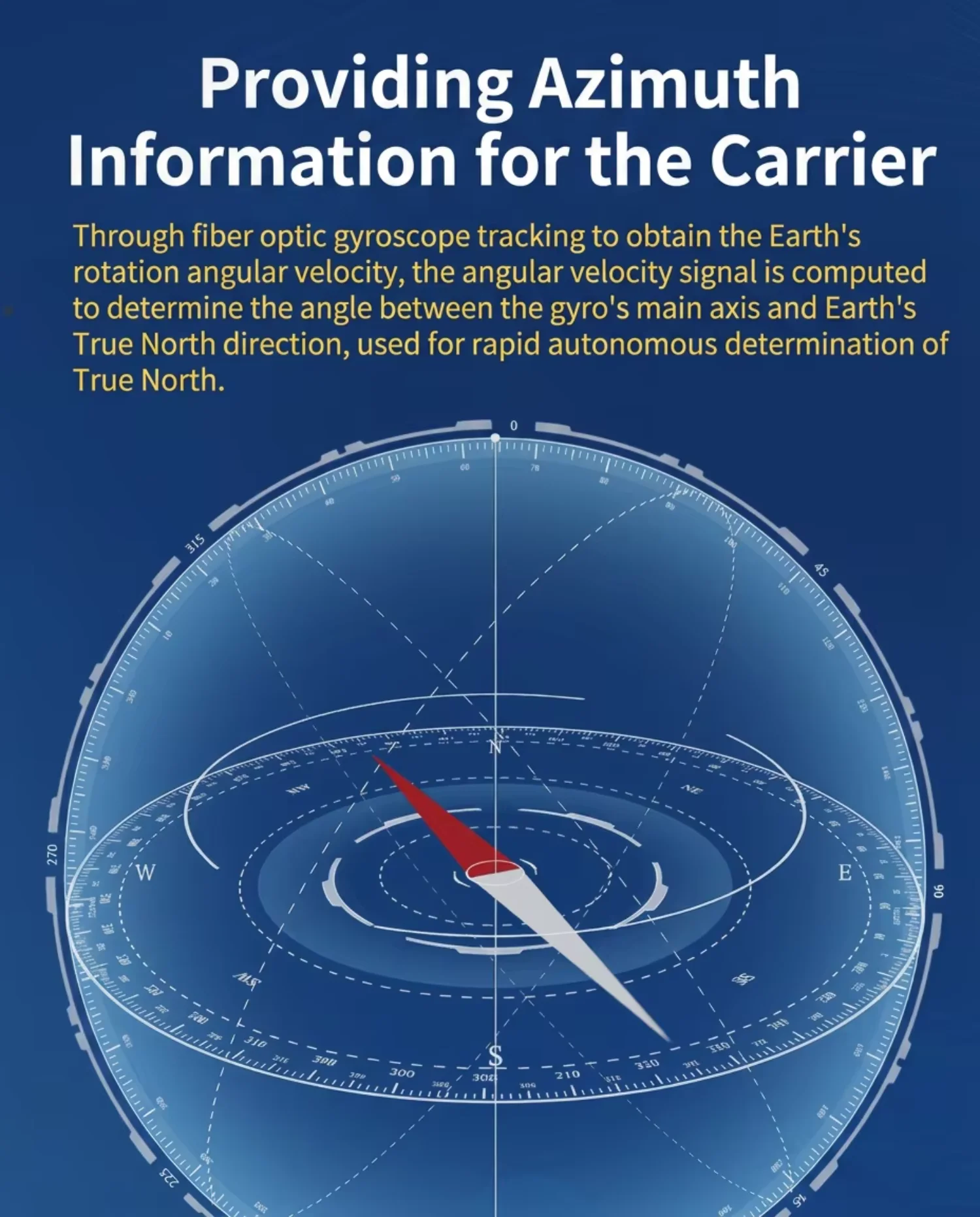

- PFT309 North Finder delivers 0.1° high precision heading in 3 minutes. Ideal for mining, tunnelling, and marine orientation, this solid-state gyro ensures rapid static alignment without magnetic interference.
- ULTIMATE PRECISION IN HARSH ENVIRONMENTS Engineered with advanced solid-state gyroscope technology, the MF309 provides a 0.1 degree north-seeking accuracy. Unlike traditional magnetic compasses, it remains unaffected by metal structures or magnetic fields, ensuring reliable orientation in deep mining and structural steel environments.
- RAPID ALIGNMENT SAVES PROJECT TIME Achieve full north alignment within 120-180 seconds. In fast-paced geological surveys and construction sites, this rapid response time reduces operational downtime, allowing your team to proceed with high-stakes measurements without waiting for lengthy stabilization periods.
- MULTI-INTERFACE SMART INTEGRATION Seamlessly connect to your existing systems via RS232, RS422, or RS485 interfaces. We also support custom TTL configurations. This flexibility ensures the sensor fits perfectly into your refined system architecture, providing low-latency digital data for real-time azimuth tracking.
- RUGGEDIZED STRUCTURAL INTEGRITY Constructed from a premium blend of stainless steel and aluminum alloy, the unit is built to withstand extreme temperatures from -20°C to +50°C. With an MTBF of over 10,000 hours, it is the professional choice for field-ready applications where equipment failure is not an option.

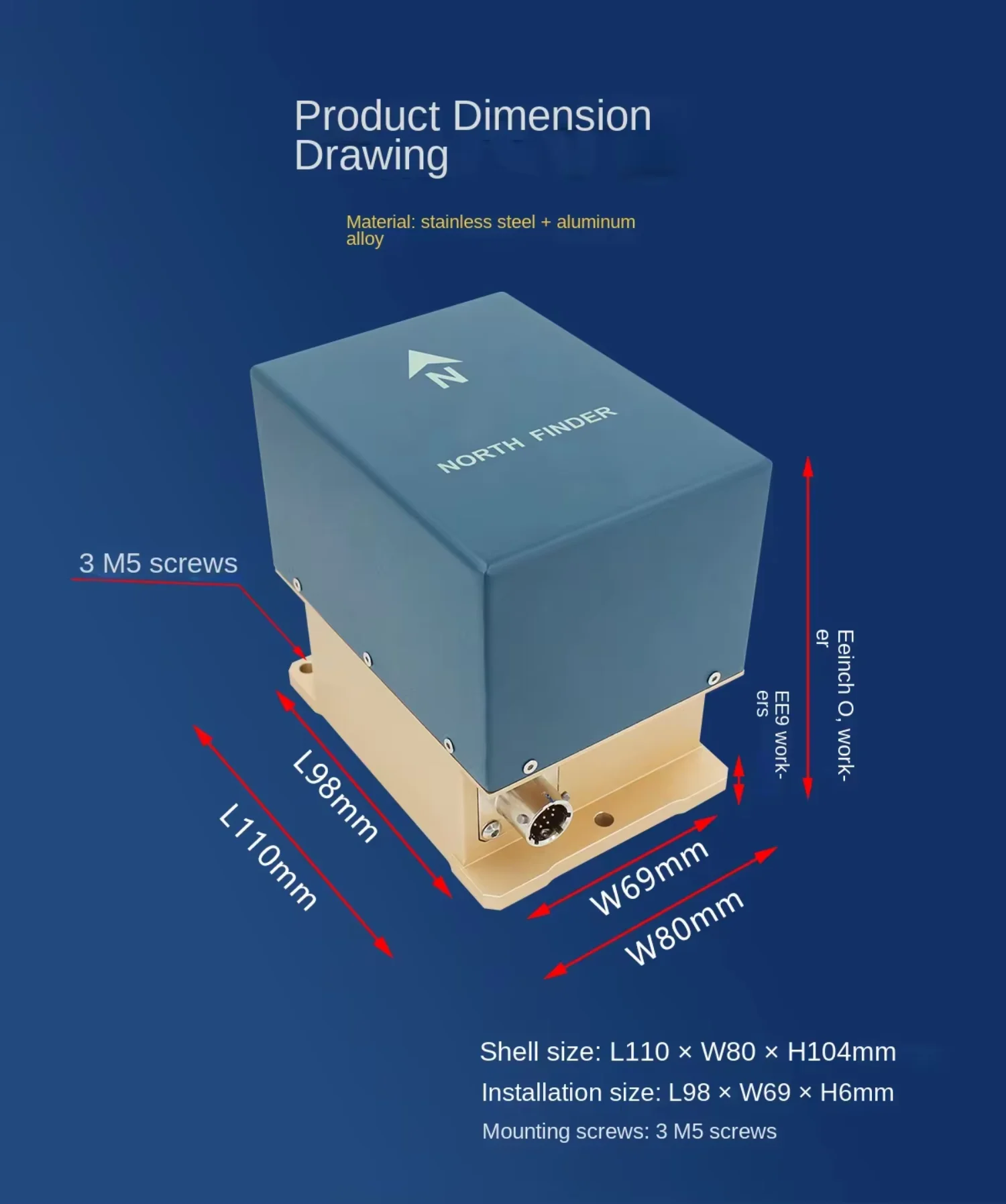

- COMPACT DESIGN FOR VERSATILE UTILITY Weighing less than 1.1kg with a compact L110 x W80mm footprint, it is easily integrated into portable survey kits or mounted on complex platforms. The low power consumption (typical 0.5A) makes it ideal for battery-operated remote site operations.
SPECIFICATIONS
|
Technical Specification
|
Value/Condition
|
|
North-seeking Time
|
3 min / 2 min (Configurable)
|
|
North-seeking Inclination Range
|
±15°
|
|
Roll and Pitch Measurement Accuracy (±15°)
|
0.2°
|
|
Roll and Pitch Resolution
|
0.2°
|
|
Heading Maintenance
|
1.2°/h (Angular Rate < 325°/s)
|
|
Power Supply
|
9.5–36VDC (Note: Wire gauge > 0.3mm², includes Power & Ground)
|
|
Operating Current
|
Typical 0.5A, Max Surge 1A
|
|
Interface
|
RS232 / RS422 / RS485 / TTL (Customizable)
|
|
Performance Parameters – Technical Specifications
|
|
|
Technical Parameter
|
Specification Value
|
|
North-seeking Time
|
3 min / 2 min (Configurable)
|
|
North-seeking Inclination Range
|
±15°
|
|
Roll and Pitch Accuracy (±15°)
|
0.2°
|
|
Roll and Pitch Resolution
|
0.2°
|
|
Heading Maintenance
|
1.2°/h (Angular Rate < 325°/s)
|
|
Power Supply
|
9.5–36VDC (Note: Wire gauge > 0.3mm², includes VCC & GND)
|
|
Operating Current
|
Typical 0.5A, Max Surge 1A
|
|
Interface
|
RS232 / RS422 / RS485 / TTL (Customizable)
|
SCENE IMAGE
|
Step
|
Phase
|
Operational Instructions
|
|
1
|
Installation
|
Complete the physical installation of the gyro north seeker in accordance with the requirements detailed in “Section VI:
Installation Method.” |
|
2
|
Wiring & Verification
|

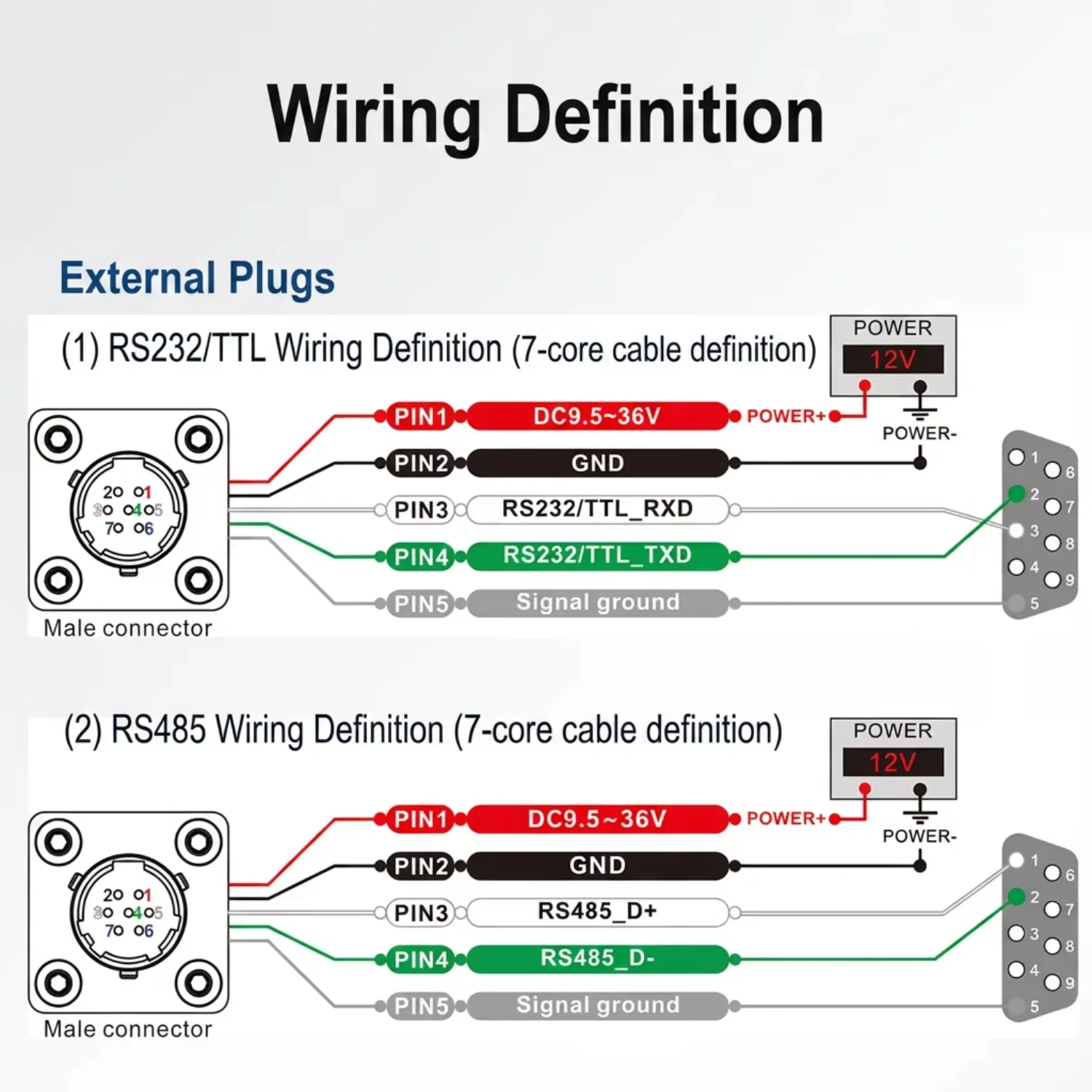

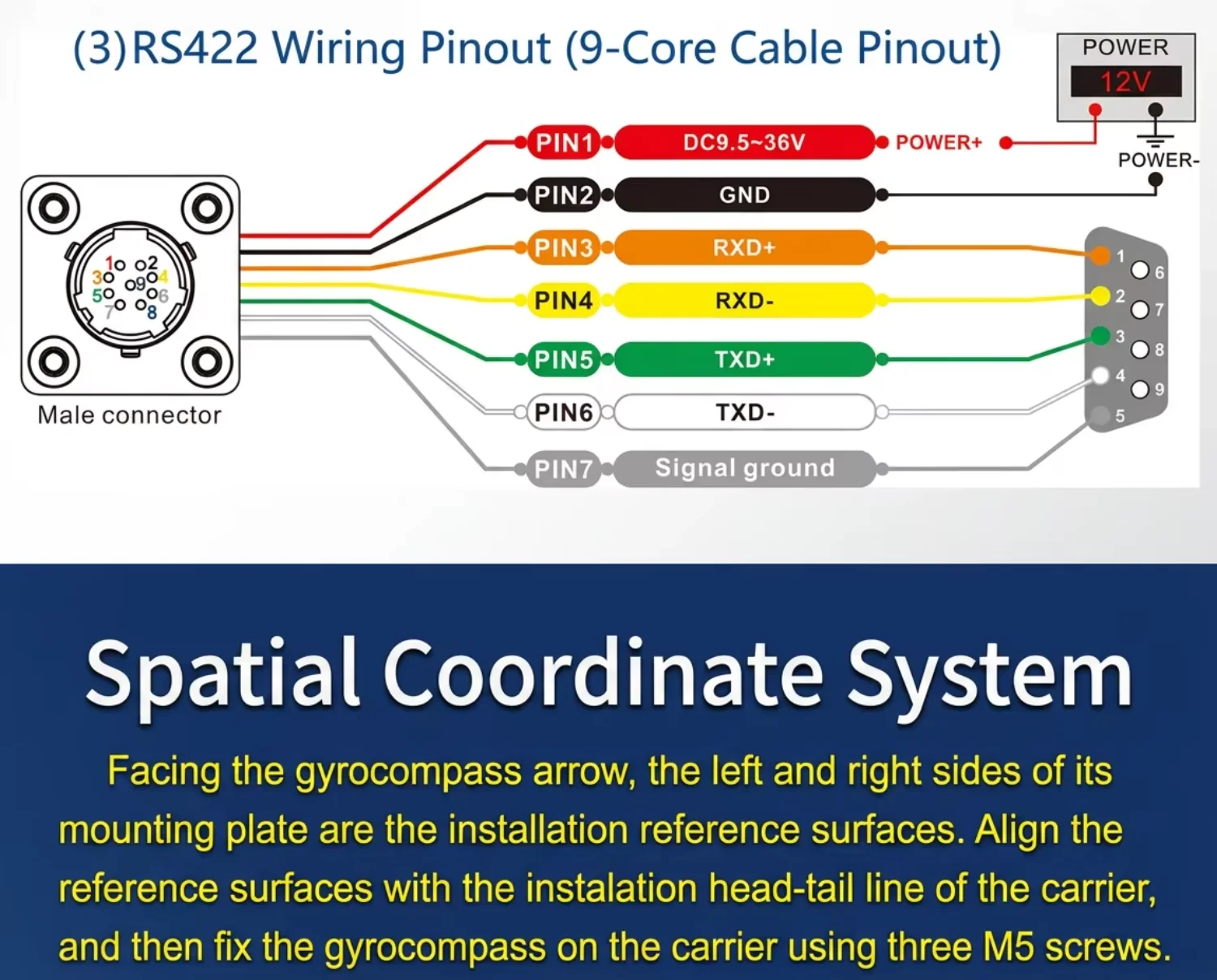

Connect the leads according to the pin definitions provided in “Section IV: External Connectors.” Verify all connections are
secure and accurate. |
|
3
|
Initialization & Self-Check
|
Apply 24V DC power. The seeker will enter automatic north-seeking mode or standby for a command. It performs a self-check (within
15s); if the system status is normal, it automatically proceeds to seeking north. |
|
4
|
Data Output
|
North-seeking completes within 2–3 minutes. The initial north-seeking result is output, followed by continuous heading angle data
derived from pure inertial navigation. |
|
5
|
Re-seeking Command
|
To initiate a new search after completion, send a command via the host computer. The device will acknowledge, enter the seeking
state, output self-check results within 30s, and then provide updated search data. |
|
6
|
Shutdown
|
Disconnect the power supply once the operation is finished.
|
