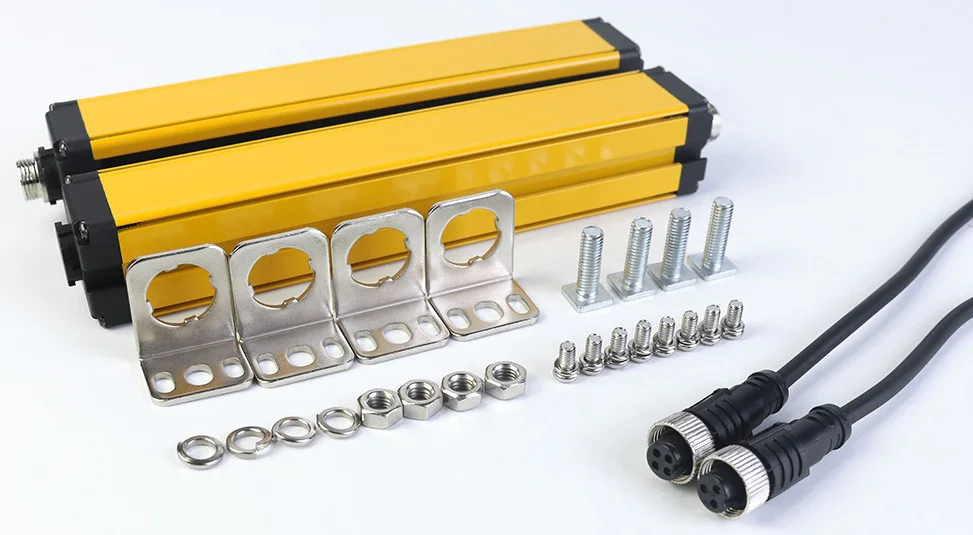

Industrial Infrared Grating Barrier Safety Light Curtain Sensor
Protect Workers. Meet Global Safety Standards.
✔ <20ms Fast Response
✔ SIL3 / PL e Certified
✔ IP67 Industrial Grade
✔ Easy Installation
✔ Stable Anti-interference
✔ Custom Heights & Ranges
Use for:

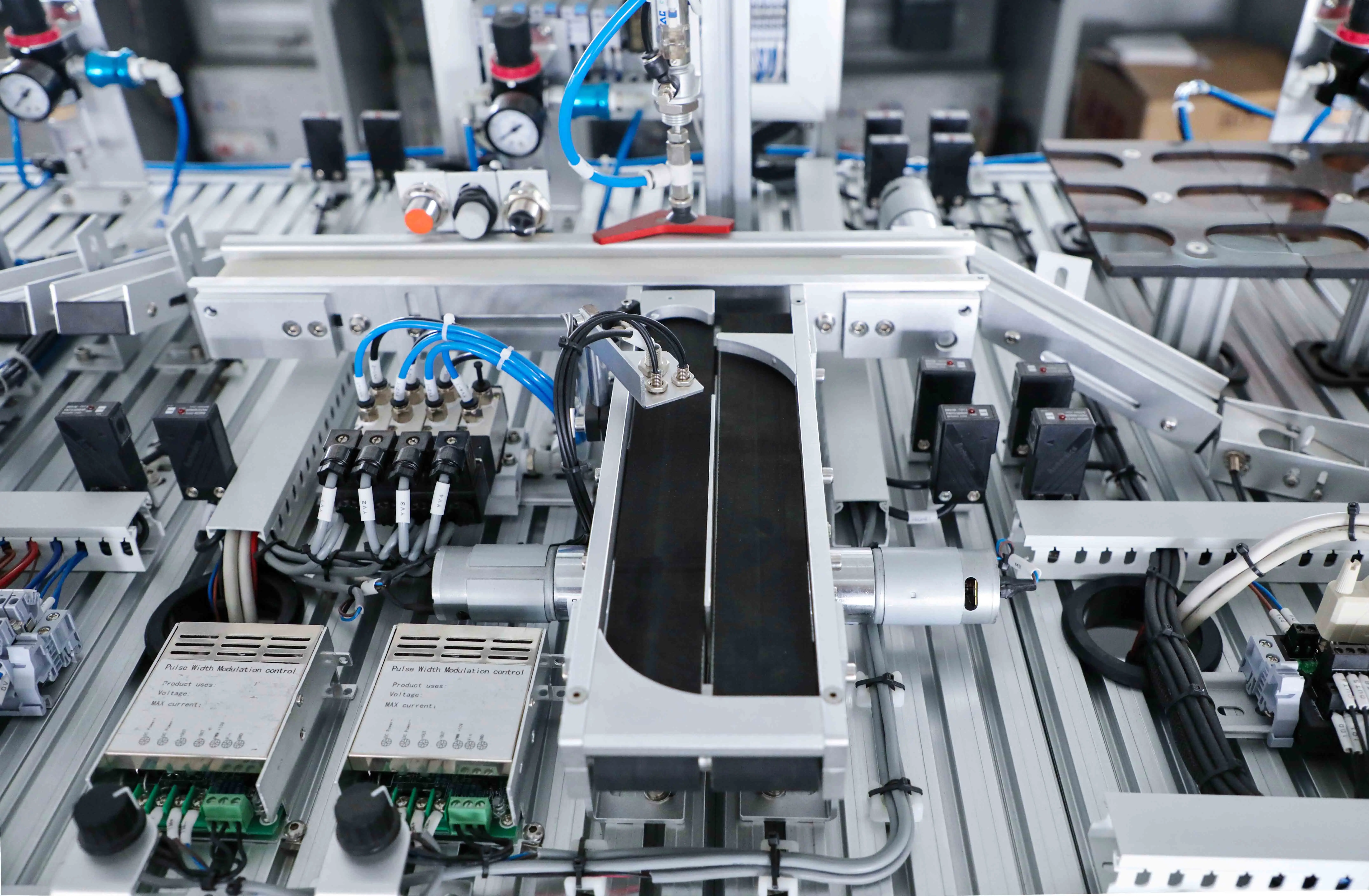

* Production Lines
* Robot Cells
* Packaging Equipment
* Conveyors
* Assembly Systems
* Hazardous Access Areas

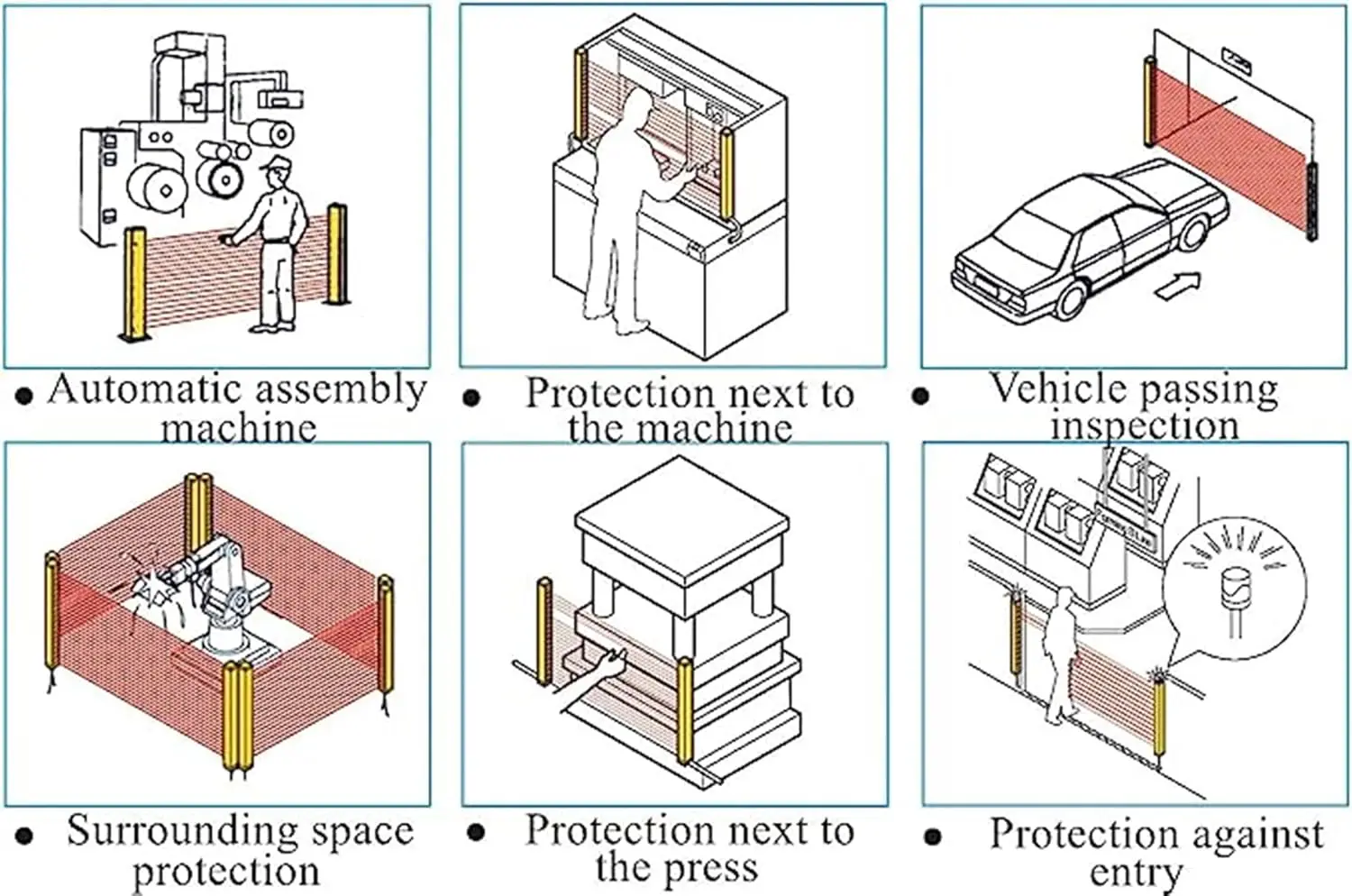

WIDE APPLICATIONS- Reliably protect people or objects in paper machinery, leather machinery, woodworking machinery, injection molding machine, forging machine, punching machine tools, security monitoring etc. Mainly used for the pipeline restricted area,bending machine, injection molding machine,stereo garage and and other dangerous equipment
|

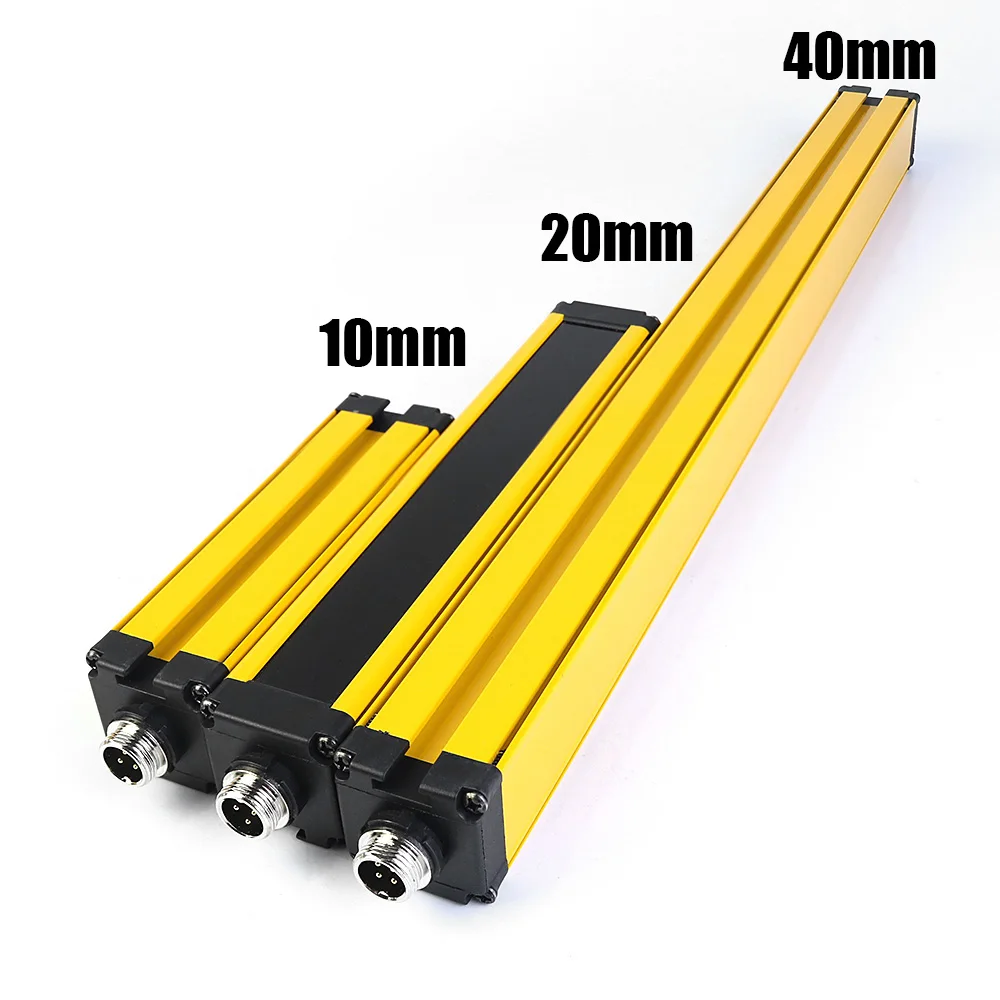

Beam Pitch
|
10mm/20mm/40mm
|
|
Number of Optical Axes
|
4,6,8,10,12…66(Customizable)
|
|

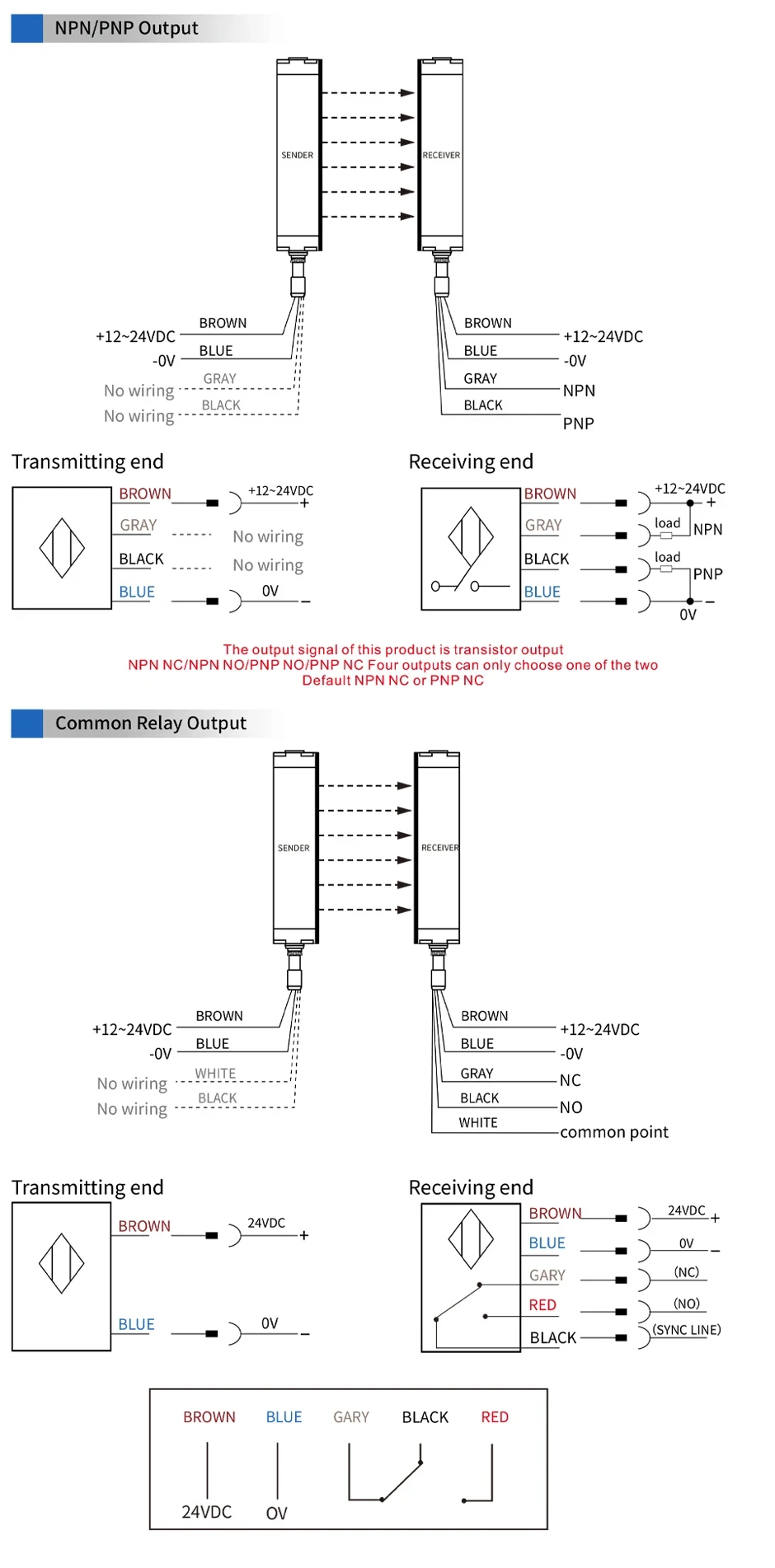

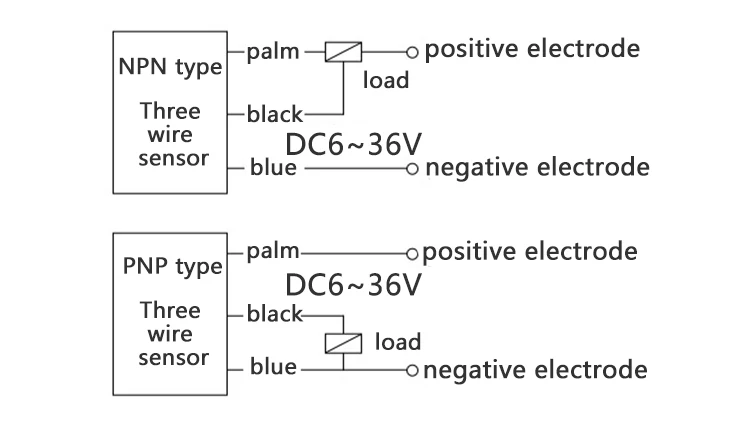

Type of Output
|
NPN/PNP
|
|

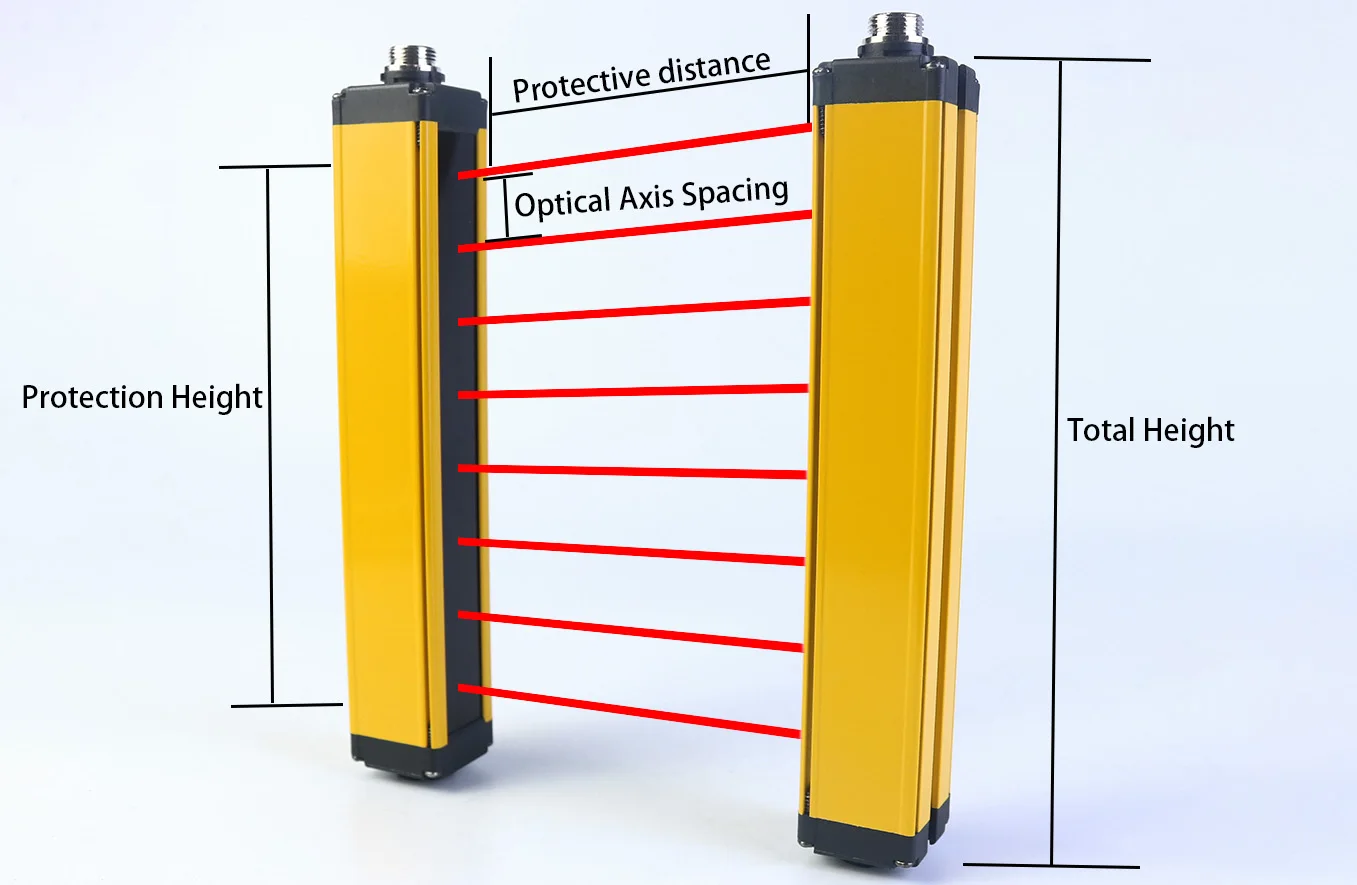

Protection Height
|
30mm~2480mm(Customizable)
|
|
Operation Temperature
|
-10~+55℃
|
|
Working Humidity
|
Relative humidity<85% at a temperature of 20℃
|
|
Response Time
|
≤10ms
|
|
Insulation Resistance
|
≥100MΩ
|
|
Anti Light Interference
|
10000Lux
|
|
Output Current
|
≤200mA
|
|
Perating Voltage
|
DC12-24V
|
|
Protection Grade
|
IP65
|
|
Detection distance
|
0.2-3m
|
|
Beam Pitch(20mm)
|
Beam Pitch(40mm)
|
|||
|
Number of Beams
|
Protection Height(mm)
|
Shell Height(mm)
|
Protection Height(mm)
|
Shell Height(mm)
|
|
4
|
60
|
130
|
120
|
200
|
|
6
|
100
|
170
|
200
|
280
|
|
8
|
140
|
210
|
280
|
360
|
|
10
|
180
|
250
|
360
|
440
|
|
12
|
220
|
290
|
440
|
520
|
|
14
|
260
|
330
|
520
|
600
|
|
16
|
300
|
370
|
600
|
680
|
|
18
|
340
|
410
|
680
|
760
|
|
20
|
380
|
450
|
760
|
840
|
|
22
|
420
|
490
|
840
|
920
|
|
24
|
460
|
530
|
920
|
1000
|
|
26
|
500
|
570
|
1000
|
1080
|
|
28
|
540
|
640
|
1080
|
1160
|
|
30
|
580
|
650
|
1160
|
1240
|
|
32
|
620
|
690
|
1240
|
1320
|
|
34
|
660
|
730
|
1320
|
1400
|
|
36
|
700
|
770
|
1400
|
1480
|
|
38
|
740
|
810
|
1480
|
1560
|
|
40
|
780
|
850
|
1560
|
1640
|

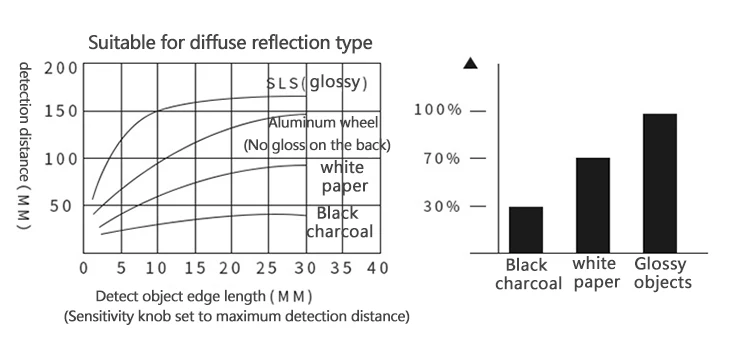

detection distance
3.The testing surface should be regularly cleaned of buildup to avoid affecting performance
4.Operating ambient temperature: -25°~+65°; relative humidity: 35~95%HR
5.Vibration: Endurance: 10~55Hz reamplitude 1.5mm, X,Y 2 hours each
6.Impact: Endurance: 500 m / s (50 g each), 10 times each in X, Y, Z direction
7.For use in strong magnetic field environments, shielded conductors are recommended
