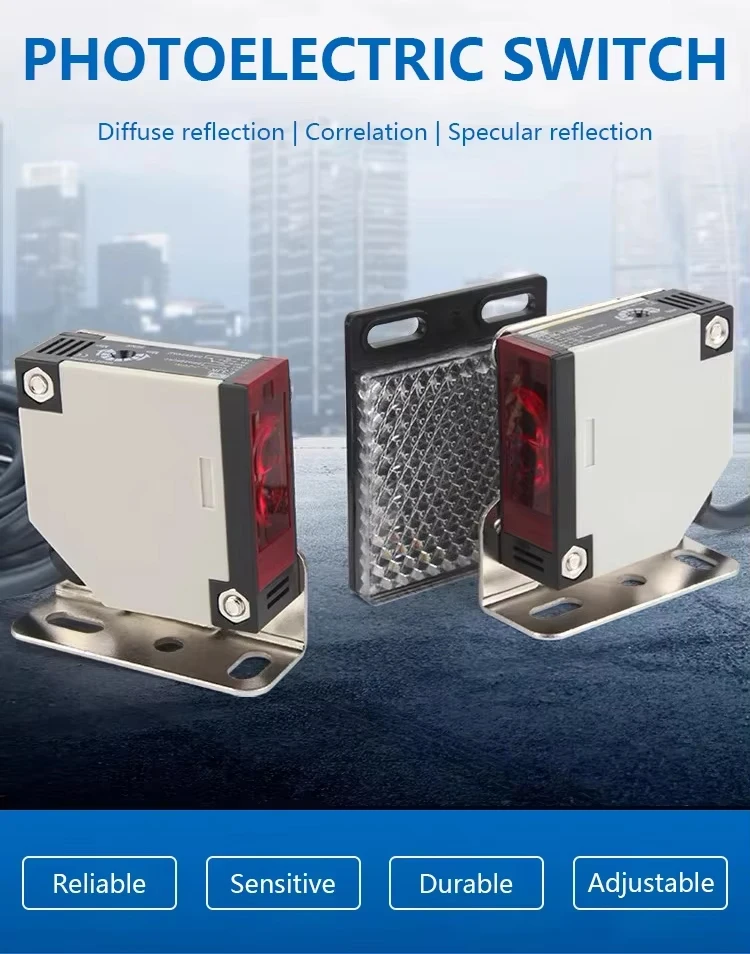

E3JK-R4M1 Gate Opener Garage Door Waterproof Universal Safety Retro-Reflective Photoelectric Beam Sensor
|
Model
|
E3JK-DS30M1
|
E3JK-DS100M1
|
E3JK-DS200M1
|
E3JK-R4M1
|
E3JK-5DM1
|
|
DC Voltage
|
DC24V-240V
|
DC24V-240V
|
DC24V-240V
|
DC24V-240V
|
DC24V-240V
|
|
AC Voltage
|
DC90-250V
|
DC90-250V
|
DC90-250V
|
DC90-250V
|
DC90-250V
|
|
Sensing Distance
|
5-30CM
|
5-100CM
|
10-200CM
|
3M
|
5M
|
|
Current Specification
|
3A
|
||||
|
Response Frequency
|
50-60HZ
|
||||
|
Action State
|
NO/NC
|
||||
|
Line Number
|
DC 3-wire (brown positive blue negative black signal wire)
|
||||
|
Pointing Angle
|
Projection angle 3-5°
|
||||
|
Detection Distance
|
Non-transparent objects over 1MM (e.g. colorless glass)
|
||||
|
Light Source (Wavelength)
|
Infrared luminescence (950)
|
||||
|
Output Current
|
300MA
|
||||
|
Current Consumption/H
|
Below 1.5
|
||||
|
Serive Life
|
2 million times
|
||||
|
Response Time
|
2Ms
|
||||
|
Sensitivity Adjustment
|
tail section regulator
|
||||
|
Ambient Illumination
|
Subject to light surface illumination incandescent lamps affect distance attenuation
|
||||
|
Ambient Temperature Range
|
-25°C~65°C
|
||||
|
Ambient
Humidity Range
|
35%~95%HR
|
||||
|
Electrical Insulation Resistance
|
200MΩ
|
||||
|
Protective Structure
|
IEC specification IP57
|
||||
|
Strongly Affect
|
110~55HZ double amplitude 1.55MM,Z,X each direction 2H
|
||||
|
Link Method
|
Lead-in type (line length 2 m)
|
||||
|
Material
|
Housing: ABS Lens: Methacrylate Knob: POM Cable: PVC
|
||||
