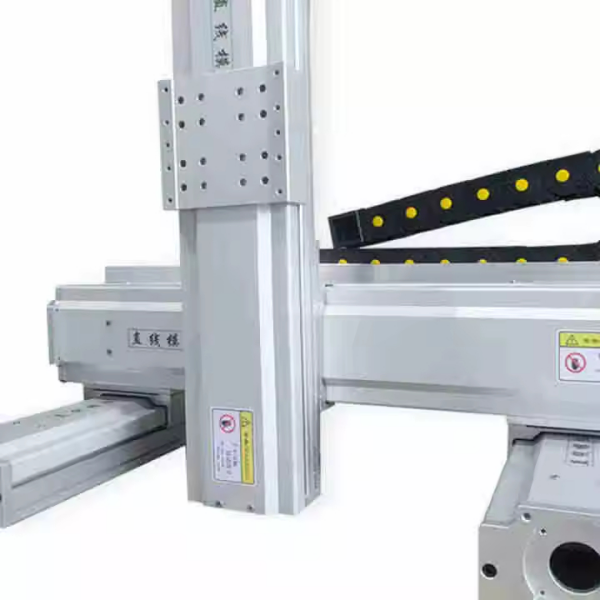

Selecting the right ball screw linear module is critical for ensuring precision, reliability, and efficiency in automation and robotic applications. These modules convert rotary motion into linear motion with high accuracy, making them essential components in CNC machines, assembly lines, and automated inspection systems.
1. Determine Load and Force Requirements
The first step in choosing a ball screw linear module is understanding your application’s load capacity. Consider both static and dynamic loads, including the weight of the moving carriage, tooling, or workpiece. Oversizing the module can increase cost and size, while undersizing may cause premature wear or reduced accuracy.
2. Evaluate Precision and Repeatability
Ball screw linear modules offer different levels of precision and repeatability, often measured in micrometers. For applications like semiconductor handling, medical equipment, or precision machining, high-precision modules with minimal backlash are essential. Check the module’s lead accuracy and repeatability specifications to match your tolerance requirements.
3. Consider Travel Distance and Stroke Length
The stroke length defines how far the module can move the load. Ensure that the selected module accommodates your system’s full travel requirements without compromising stability. Some modules also allow customizable stroke lengths to fit compact or irregular designs.
4. Speed and Acceleration
Different ball screw modules have varying limits for speed and acceleration. High-speed applications require modules with appropriate ball screw pitch, nut design, and lubrication to maintain performance without sacrificing precision. Evaluate the maximum linear velocity and acceleration required for your process.
5. Mounting and Integration
Ease of integration is key for automated systems. Check the mounting options, guide type, and compatibility with your machine’s frame. Consider preloaded modules for reduced vibration and better rigidity, especially in high-precision or high-load applications.
6. Environmental Considerations
Some environments expose linear modules to dust, moisture, or temperature extremes. Choosing a protected or sealed ball screw module can prevent contamination, reduce maintenance, and prolong service life.
In conclusion, selecting the right ball screw linear module requires careful consideration of load, precision, travel, speed, and environmental conditions. Matching these parameters to your application ensures long-term reliability, smooth motion, and optimal performance.
Looking for high-quality ball screw linear modules for your automation project? Contact our engineering team today to find the perfect solution tailored to your application.
