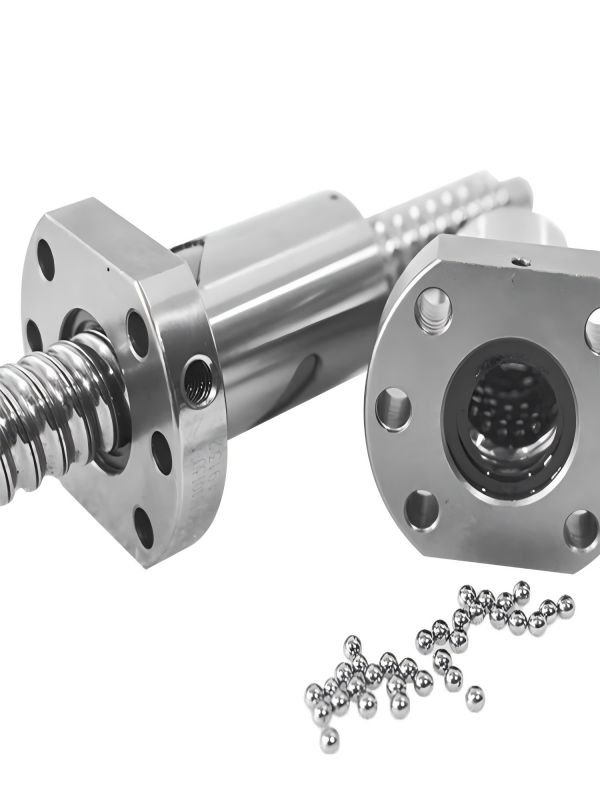

Choosing the right precision ball screw nut set is crucial for achieving high-performance motion control in CNC machines, robotics, and industrial automation. A ball screw converts rotational motion into linear motion with high efficiency, and the nut set plays a pivotal role in accuracy, load capacity, and lifespan. Selecting the right combination can significantly impact your system’s precision and reliability.
1. Determine Accuracy Requirements
Precision ball screw nut sets are classified by their accuracy grade, such as C0, C3, C5, or C7. Higher accuracy grades (C0 or C3) offer minimal backlash and excellent positioning precision, making them ideal for CNC machining centers or precision assembly systems. Lower grades are suitable for less demanding applications. Always match the nut set grade with your machine’s required tolerance to ensure consistent performance.
2. Consider Load Capacity and Life Expectancy
Ball screw nut sets differ in dynamic and static load capacities, which influence their operational life. Evaluate the expected axial load and select a nut set that can handle it without premature wear. For heavy-load applications, consider double-nut configurations with preloading to increase stiffness and reduce backlash.
3. Choose Preload Type
Preloading eliminates backlash and improves stiffness, crucial for precise linear motion. Options include single-nut with clearance, light preload, or heavy preload. Machines requiring ultra-precision positioning benefit from preloaded nuts, while moderate loads can operate efficiently with standard clearance nuts.
4. Material and Coating Selection
High-quality steel or stainless steel ball screw nuts offer durability and resistance to wear. For harsh environments, consider corrosion-resistant coatings or hardened materials to extend service life and maintain smooth operation.
5. Size and Compatibility
Ensure the ball screw nut set matches your lead, diameter, and mounting configuration. Incorrect sizing can lead to misalignment, vibration, or reduced efficiency. Check manufacturer datasheets for recommended pairings.
Conclusion
Selecting the right precision ball screw nut set involves balancing accuracy, load capacity, preload, material, and compatibility. By carefully considering these factors, you can maximize your machine’s performance, reliability, and longevity.
Looking for high-quality precision ball screw nut sets for CNC or automation projects? Contact our experts today to find the perfect solution for your system’s needs.
