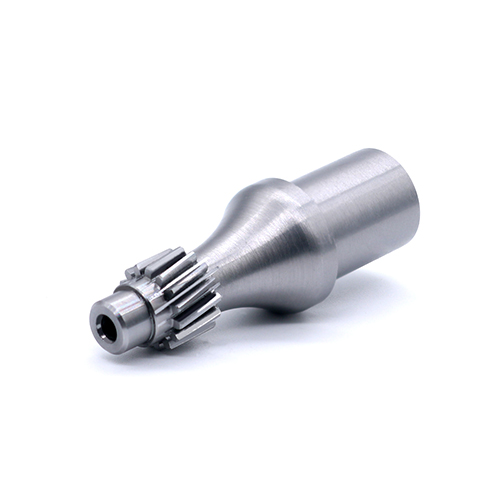

CNC Machining with CMM Inspection Included
Product Overview
When you need ultra-precisemetal or plastic components, CNC machining alone isn’t always enough. That’s where CMM (Coordinate Measuring Machine) inspection comes in—a critical step that ensures every part meets exact specifications.
A CMM is a high-tech measuring device that uses a sensitive probe (or laser) to check a part’s dimensions against its CAD model. Think of it as a super-accurate ruler that verifies:
✔ Critical dimensions (Is that hole exactly 10.00mm?)
✔ Geometric tolerances (Flatness, roundness, concentricity)
✔ Surface profiles (Does the curvature match the design?)
1. Catches Hidden Errors Before They Cost You
- ●CNC machines are precise, but tool wear, material stress, or fixturing issues can cause tiny deviations.
- ●CMM inspection catches these before parts go into assembly.
2. Saves Money on Bad Batches
- ●Imagine machining 1,000 aerospace brackets, only to find out 10% are out of spec.
- ●CMM checks sample parts mid-production, preventing costly scrap.
3. Proof of Quality for Critical Industries
- ●Medical, aerospace, and automotive clients demand inspection reports.
- ●CMM data proves your parts meet ISO, AS9100, or FDA standards.
4. Faster than Manual Inspection
- ●Checking complex parts with calipers takes hours.
- ●A CMM does it in minutes with higher accuracy.
A good inspection report includes:
- ●Color-coded deviation maps (Green = good, red = out of spec)
- ●Actual vs. nominal dimensions
- ●Pass/fail summary (For QA records)
For mission-critical parts, absolutely. The extra cost is cheap insurance against:
✖ Failed QC inspections
✖ Assembly line delays
✖ Recalls from out-of-spec parts
We are proud to hold several production certificates for our CNC machining services,which demonstrates our commitment to quality and customer satisfaction.
1、ISO13485:MEDICAL DEVICES QUALITYMANAGEMENT SYSTEM CERTIFICATE
2、ISO9001:QUALITY MANAGEMENT SYSTEMCERTIFICATE
3、IATF16949、AS9100、SGS、CE、CQC、RoHS
● Great CNCmachining impressive laser engraving best Ive everseensofar Good quaity overall,and allthe pieces were packed carefully.
● Excelente me slento contento me sorprendio la calidad deias plezas un gran trabajo This company does a really nice job on quality.
● If there is an issue they are quick to fix itVery good communication and fast responise times This company always does what I ask.
● They even find any errors that we may have made.
● We have been dealing with this company for a number of years and have always recelved exemplary service.
● I am very pleased with the outstanding quality or mynew parts.The pnce is very competiive and the custo mer service is among the best Ive ever experienced.
● Fast tumaround rabulous quality,and some of the best customer service anywhere on Earth.
Q:How fast can I receive a CNC prototype?
A:Lead times vary depending on part complexity, material availability, and finishing requirements, but generally:
● Simple prototypes: 1–3 business days
● Complex or multi-part projects: 5–10 business days
Expedited service is often available.
Q:What design files do I need to provide?
A：To get started, you should submit:
● 3D CAD files (preferably in STEP, IGES, or STL format)
● 2D drawings (PDF or DWG) if specific tolerances, threads, or surface finishes are required
Q:Can you handle tight tolerances?
A:Yes. CNC machining is ideal for achieving tight tolerances, typically within:
● ±0.005" (±0.127 mm) standard
● Tighter tolerances available upon request (e.g., ±0.001" or better)
Q:Is CNC prototyping suitable for functional testing?
A:Yes. CNC prototypes are made from real engineering-grade materials, making them ideal for functional testing, fit checks, and mechanical evaluations.
Q:Do you offer low-volume production in addition to prototypes?
A:Yes. Many CNC services provide bridge production or low-volume manufacturing, ideal for quantities from 1 to several hundred units.
Q:Is my design confidential?
A:Yes. Reputable CNC prototype services always sign Non-Disclosure Agreements (NDAs) and treat your files and intellectual property with full confidentiality.
